Comcast Equipment List
Standard Equipment
- (1) Primary Access Modem: Comcast-provided, supports primary WAN connection
- (1) Cradlepoint W1850: Primary router/firewall (optional deployment)
- (1) Cradlepoint E110: Backup cellular WAN failover device
- (2) FortiGate 70F Firewalls: Primary and Secondary (HA pair with redundant connections)
- (1) Watt Box: Managed power distribution unit with network-connected port
- (2) Cisco 48-Port Switches: Switch 1 (primary) and Switch 2 (secondary)
- (2) Meraki MR36 Access Points: AP1 (Switch 1 zone) and AP2 (Switch 2 zone)
- (1) Cisco SPA 122: VoIP adapter (optional)
- (2) SmartHub Red Controllers: Red0 and Red5

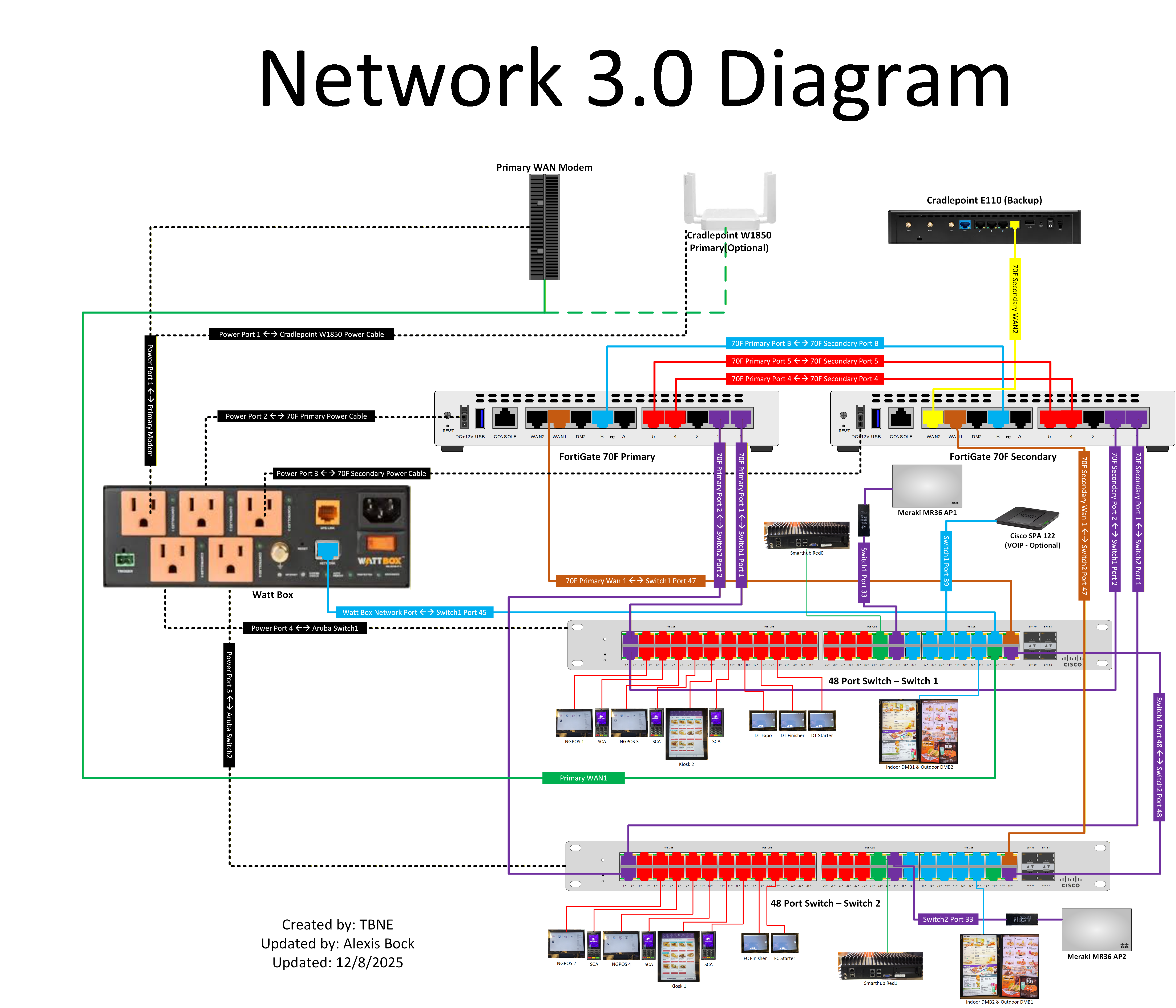

Network Diagram
|
🔌 Watt Box (Power Distribution) |
||
|
Port |
Connection |
Cable |
|
Power Port 1 |
Primary Modem |
Power |
|
Power Port 1 |
Cradlepoint W1850 |
Power Cable |
|
Power Port 2 |
FortiGate 70F Primary |
70F Primary Power Cable |
|
Power Port 3 |
FortiGate 70F Secondary |
70F Secondary Power Cable |
|
Power Port 4 |
Aruba Switch 1 |
Power |
|
Power Port 5 |
Aruba Switch 2 |
Power |
|
Network Port |
Switch 1 — Port 45 |
Network |
Firewall Layout
FortiGate 70F Primary FortiGate 70F Secondary
|
Port |
Connection |
Port |
Connection |
|
|
WAN1 |
Switch 1 – Port 47 |
WAN1 |
Switch 2 – Port 47 |
|
|
WAN2 |
Not Connected |
WAN2 |
Cradlepoint E110 Secondary WAN | |
|
DMZ |
Not Connected |
DMZ |
Not Connected |
|
|
FortiLink B |
FortiGate Secondary – Port B |
FortiLink B |
FortiGate Primary – Port B |
|
|
Port 1 |
Switch 1 – Port 1 |
Port 1 |
Switch 2 – Port 1 |
|
|
Port 2 |
Switch 1 – Port 2 |
Port 2 |
Switch 2 – Port 2 |
|
|
Port 3 |
Not Connected |
Port 3 |
Not Connected |
|
|
Port 4 |
FortiGate Secondary – Port 4 |
Port 4 |
FortiGate Primary – Port 4 |
|
|
Port 5 |
FortiGate Secondary – Port 5 |
Port 5 |
FortiGate Primary – Port 5 |
Switch Port Layout
48 Port Switch – Switch 1 48 Port Switch – Switch 2
|
Port |
Device / Connection |
Type |
Port |
Device / Connection |
Type |
|
|
1 |
FortiGate 70F Primary Port 1 |
Firewall |
1 |
FortiGate 70F Secondary Port 1 |
Firewall |
|
|
2 |
FortiGate 70F Secondary Port 2 |
Firewall |
2 |
FortiGate 70F Primary Port 2 |
Firewall |
|
|
3 |
NGPOS 1 |
POS |
3 |
|
POS |
|
|
4 |
|
POS |
4 |
|
POS |
|
|
5 |
|
POS |
5 |
|
POS |
|
|
6 |
SCA |
POS |
6 |
NGPOS 2 |
POS |
|
|
7 |
|
POS |
7 |
|
POS |
|
|
8 |
NGPOS 2 |
POS |
8 |
SCA |
POS |
|
|
9 |
|
POS |
9 |
|
POS |
|
|
10 |
SCA |
POS |
10 |
NGPOS 4 |
POS |
|
|
11 |
|
POS |
11 |
|
POS |
|
|
12 |
Kiosk 2 |
POS |
12 |
SCA |
POS |
|
|
13 |
|
POS |
13 |
|
POS |
|
|
14 |
SCA |
POS |
14 |
Kiosk 1 |
POS |
|
|
15 |
|
POS |
15 |
|
POS |
|
|
16 |
|
POS |
16 |
SCA |
POS |
|
|
17 |
|
POS |
17 |
|
POS |
|
|
18 |
|
POS |
18 |
FC Finisher |
POS |
|
|
19 |
|
POS |
19 |
|
POS |
|
|
20 |
|
POS |
20 |
FC Starter |
POS |
|
|
21 |
|
POS |
21 |
|
POS |
|
|
22 |
|
POS |
22 |
|
POS |
|
|
23 |
|
POS |
23 |
|
POS |
|
|
24 |
|
POS |
24 |
|
POS |
|
|
25 |
|
POS |
25 |
|
POS |
|
|
26 |
|
POS |
26 |
|
POS |
|
|
27 |
|
POS |
27 |
|
POS |
|
|
28 |
|
POS |
28 |
|
POS |
|
|
29 |
|
POS |
29 |
|
POS |
|
|
30 |
|
POS |
30 |
|
POS |
|
|
31 |
Smarthub Red0 |
Smarthub |
31 |
Smarthub Red1 |
Smarthub |
|
|
32 |
|
Smarthub |
32 |
|
Smarthub |
|
|
33 |
Meraki MR36 AP1 |
AP |
33 |
Meraki MR36 AP2 |
AP |
|
|
34 |
|
AP |
34 |
|
AP |
|
|
35 |
|
|
35 |
|
|
|
|
36 |
|
|
36 |
|
|
|
|
37 |
|
|
37 |
|
|
|
|
38 |
|
|
38 |
|
|
|
|
39 |
Cisco SPA122 |
|
39 |
|
|
|
|
40 |
|
|
40 |
|
|
|
|
41 |
|
|
41 |
|
|
|
|
42 |
|
|
42 |
|
|
|
|
43 |
|
|
43 |
|
|
|
|
44 |
Indoor DMB1/Outdoor DMB2 |
|
44 |
Indoor DMB2/Outdoor DMB1 |
|
|
|
45 |
Watt Box (Network Port) |
MGMT |
45 |
|
|
|
|
46 |
Primary WAN1 |
|
46 |
|
|
|
|
47 |
FortiGate 70F Primary (WAN1) |
UPLINK |
47 |
FortiGate 70F Secondary(WAN1) |
UPLINK |
|
|
48 |
Switch 2 Uplink (Port 48) |
TRUNK |
48 |
Switch 2 Uplink (Port 48) |
TRUNK |
